Yuqori bosimli uglerod va zanglamaydigan po'latdan yasalgan gidravlik gardish armaturalari
Yuqori bosimli uglerod va zanglamaydigan po'latdan yasalgan gidravlik gardish armaturalari
Yuqori bosimli uglerod va zanglamaydigan po'latdan yasalgan gidravlik gardish armaturalari
Yuqori bosimli uglerod va zanglamaydigan po'latdan yasalgan gidravlik gardish armaturalari

Yuqori bosimli uglerod va zanglamaydigan po'latdan yasalgan gidravlik gardish armaturalari

Our Carbon Steel & Stainless Steel Hydraulic Flange fittings are precision-engineered, high-pressure connectors designed for demanding hydraulic systems. Compliant with SAE J518 and ISO 6162 standards, these flanges provide leak-proof, vibration-resistant connections for valve blocks, pumps, and pipelines. Available in carbon steel (42CrMo) for extreme strength or stainless steel (SS316) for corrosion resistance, they support pressures up to 700 bar (10,000 PSI) while saving 30-50% space versus traditional flanges. The item incldue striaght, 45 degree and 90 degree . The code have 61 and 62. The shape include bending and forged.

MA'LUMOT
Tavsif

Asosiy xususiyatlari va afzalliklari

1. Ultra-High Pressure Resistance

350–700 bar (5,000–10,000 PSI) working pressure, with 4x burst pressure safety margin.

Materiallar opsiyalari:

Carbon Steel (42CrMo): Ideal for heavy-duty industrial applications.

Stainless Steel (SS316): Perfect for marine, chemical, or food-grade environments.

2. Space-Saving Embedded Design

50% more compact than standard flanges, fitting seamlessly into valve blocks or tight spaces.

Reduces system bulk in construction machinery, wind turbines, and mobile hydraulics.

3. Zero-Leak Sealing Technology

Dual Sealing System: Combines FKM/NBR O-rings with metal-to-metal cone seals for failsafe performance.

Meets SAE J518 Code 61/62 and ISO 6162 standards for guaranteed compatibility.

4. Quick-Connect & Modular Maintenance

Self-sealing valve options allow testing/sampling without system shutdown.

Replaceable flange cores eliminate full disassembly, cutting downtime by 70%.

5. Anti-Vibration & Longevity

Locking threads and phosphated/nickel-plated surfaces prevent loosening under vibration.

Withstands 100,000+ pressure cycles (ISO 10771 certified).

undefined1JFL9
undefined1804-FG


Why Choose Our Hydraulic Flanges?

✔ Proven Reliability: Rigorously tested for ISO and SAE compliance.

✔ Global Standardization: Interchangeable with major OEM systems.

✔ Cost-Effective: Modular design reduces lifecycle costs.

✔ Customizable: Optional sensor ports, RFID tags, or special coatings.

Xulosa

For high-pressure hydraulic systems demanding compact size, zero leaks, and easy maintenance, our Carbon & Stainless Steel Hydraulic Flanges deliver unmatched performance. Whether in construction, energy, or industrial automation, these adapters ensure safe, durable, and efficient fluid power connections.

Request a quote today for SAE/ISO-compliant hydraulic solutions!

Texnik ma'lumotlar

Note - All fittings in the JICM x SAE Flange series are one piece construction

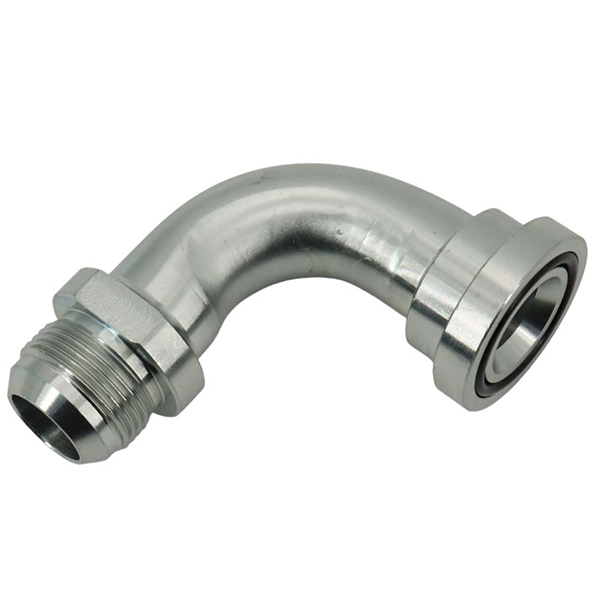

JIC Male x SAE Flange CD 61 90 Degree Bend Adaptor (figure 1JFL9)

ip gardish Qism No L M D W H
Dash JIC Dash Cd 61 mm mm mm mm mm
-12 3 / 4-16 -08 1/2 1JFL9-1208 46 57 30.2 6.7 22
-12 3 / 4-16 -12 3/4 1JFL9-1212 46 60 38.1 6.7 22
-14 7 / 8-14 -08 1/2 1JFL9-1408 51 65 30.2 6.7 24
-17 1.1 / 16-12 -12 3/4 1JFL9-1712 54 73 38.1 6.7 30
-17 1.1 / 16-12 -16 1 1JFL9-1716 54 73 44.5 8.0 30
-17 1.1 / 16-12 -16 1 1JFL9-1720 54 73 50.8 8.0 30
-21 1.5 / 16-12 -12 3/4 1JFL9-2112 66 86 38.1 6.7 35
-21 1.5 / 16-12 -16 1 1JFL9-2116 66 86 44.5 8.0 35
-21 1.5 / 16-12 -20 1.1/4 1JFL9-2120 66 86 50.8 8.0 35
-21 1.5 / 16-12 -24 1.1/2 1JFL9-2124 68 86 60.3 8.0 35
-26 1.5 / 8-12 -20 1.1/4 1JFL9-2620 77 101 50.8 8.0 42
-26 1.5 / 8-12 -24 1.1/2 1JFL9-2624 82 103 60.3 8.0 42
-26 1.5 / 8-12 -32 2 1JFL9-2632 89 101 71.4 9.5 42
-30 1.7 / 8-12 -24 1.1/2 1JFL9-3024 93 116 60.3 8.0 50
-30 1.7 / 8-12 -32 2 1JFL9-3032 93 116 71.4 9.5 50
-40 2.1 / 2-12 -32 2 1JFL9-4032 114 168 71.4 9.5 66


undefined

Note - All fittings in the JICM x SAE Flange series are one piece construction

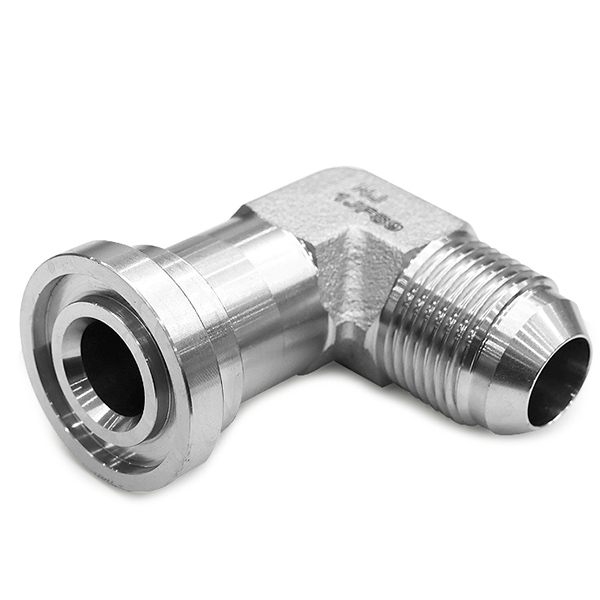

JIC Male x SAE CD 62 Flange 90 Elbow (figure 1804-FG)

ip gardish Qism No L1 L2 D W S1
Dash JIC Dash CD-62 mm mm mm mm mm
-17 1.1 / 16-12 -12 3/4 1JFLH9C-1712 48 48 41.3 8.8 32
-17 1.1 / 16-12 -16 1 1JFLH9C-1716 60 50 47.6 9.5 41
-21 1.5 / 16-12 -16 1 1JFLH9C-2116 60 50 47.6 9.5 41
ariza

Construction Equipment: Excavators, loaders, and cranes requiring compact, high-pressure connections.

Wind Energy: Hydraulic pitch systems in turbines.

Industrial Machinery: Injection molding, presses, and automation systems.

Marine & Offshore: Corrosion-resistant SS316 flanges for ship hydraulics.

Mining & Agriculture: Durable carbon steel flanges for harsh environments.
