R1 R2 R5 kauchuk shlang uchun SAE BSP po'latdan zanglamaydigan po'latdan qayta ishlatiladigan shlang moslamasi
Qayta foydalanish mumkin bo'lgan shlang qismlari bir necha marta ishlatilishi mumkin bo'lgan gidravlik armatura turidir. Ularni osongina qismlarga ajratish va qayta yig'ish mumkin, bu ularni shlanglar yoki quvurlarni almashtirish yoki ta'mirlash kerak bo'lgan holatlar uchun ideal qiladi. Bu butun fittingni almashtirish bilan solishtirganda vaqt va pulni tejash imkonini beradi.
Tavsif

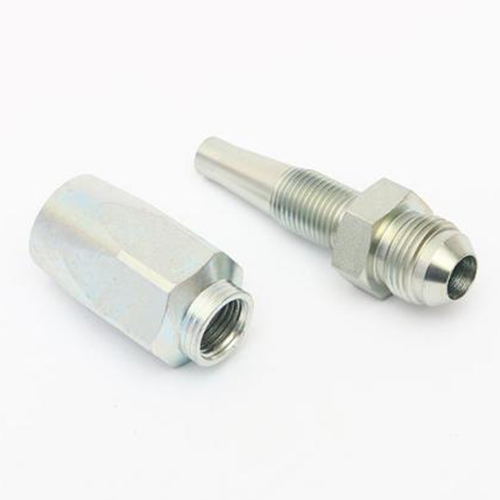

Qayta foydalanish mumkin bo'lgan shlang qismlari odatda ikkita qismdan iborat - armatura (faqat korpus) va rezina shlang yoki trubkaga ulanishi mumkin bo'lgan rozetka. Fitting va rozetka bir-biriga tishlash uchun mo'ljallangan bo'lib, ikkita komponent o'rtasida ishonchli va mustahkam aloqani yaratadi.

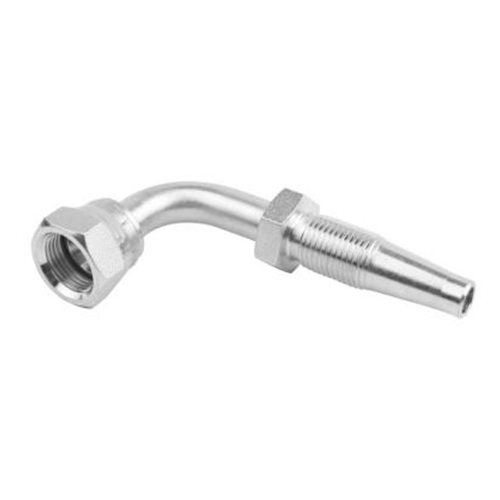

Fittingning ip tomoni erkak yoki ayol bo'lishi mumkin va ular turli xil o'rnatish muhitlariga mos keladigan tekis, 45 daraja tirsak, 90 daraja tirsak bo'lishi mumkin.
Ip tomonining ip turi: Turli bozorlarning dastur standart talablariga va dastur muhitida qayta ishlatiladigan shlang moslamasining ish bosimiga qo'yiladigan talablarga javob berish uchun biz quyida keltirilgan turli xil ip va muhr turlarini taqdim etamiz:
Qayta foydalanish mumkin bo'lgan JIC (Qo'shma sanoat qo'mitasi) Shlangi armaturalari: 37 daraja yonib ketgan, SAE J514
U ulanishni amalga oshirish va SAE J514 standartiga javob berish uchun 37 daraja yonib turgan o'tiradigan joydan foydalanadi. Va odatda past bosim darajasi uchun ishlatiladi, tekis, 45 tirsak va 90 tirsak turli xil o'rnatish muhitlariga mos kelishi mumkin.

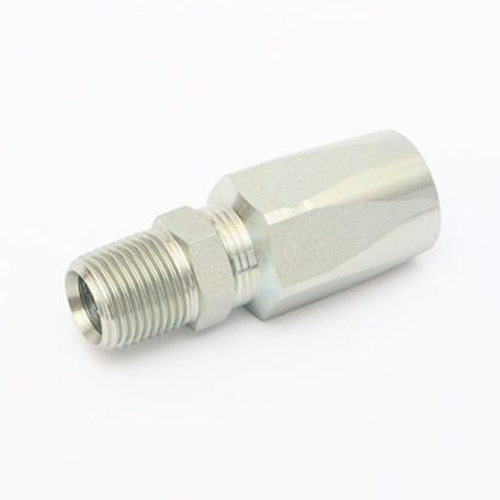

NPT (Milliy quvur ipi) qayta ishlatiladigan shlang qismlari: konusli ip
NPT iplari Amerika bozorida, ayniqsa Shimoliy Amerikada eng ko'p qabul qilinadi, shuning uchun NPT qayta ishlatiladigan armatura AQSh va Kanadada eng yaxshi sotiladi.
ORFS (O-Ring Face Seal) Qayta foydalanish mumkin bo'lgan shlang qismlari: O-Ring Face Seal (SAE J1453)
ORFS moslamasi hozirgi bozorda yuqori bosimli uskunalar uchun eng mashhur mahsulotdir, chunki uning O-ring uchi muhri 6000psi yuqori bosim ostida barqaror ishlashini ta'minlaydi. Shunday qilib, agar siz oqishdan xavotirda bo'lsangiz, ORFS ajraladigan ulagichi sizning eng oqilona tanlovingiz bo'ladi.
BSP (Britaniya standart quvurlari) qayta ishlatiladigan shlang qismlari: BSPP, BSPT, BS 5200 ni o'z ichiga oladi
BSP qayta ishlatiladigan shlang moslamasi BSPP va BSPT ni o'z ichiga oladi. Ular Evropada juda mashhur va ishonchli bosim darajasini ta'minlaydi. NPT armaturalarini afzal ko'rgan mijozlar ko'pincha BSP armaturalarini ham tanlaydilar.
JIS: bu JIS konusli quvur ipiga (JIS B2351) mos keladigan 30 gradusli o'tiradigan joy.
JIS ham ingliz tilidir va u Yaponiyada odatiy holdir, garchi foydalanuvchi guruhi kichik bo'lsa-da, u juda ishonchli. Odatda 30 graduslik konusning muhridan foydalanadi va JIS B2351 standartiga mos keladi.
Texnik ma'lumotlar

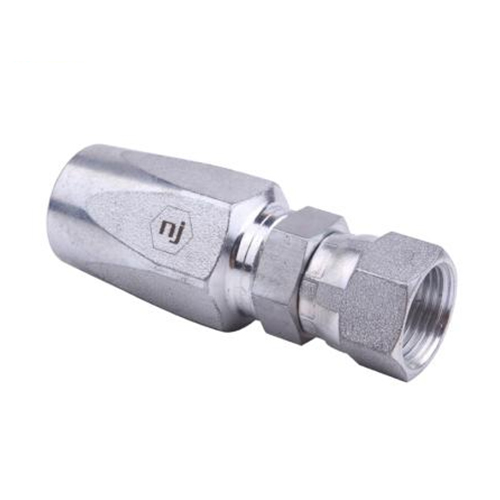

I8J - JIC AYOL TO'G'RI
| ip | Shlang | Qism No | H | H1 | CA | N | ||
| Dash | O'lcham | Dash | O'lcham | mm | mm | mm | mm | |
| -7 | 7 / 16-20 | -4 | 1 / 4 " | I8J-0704 | 14.3 | 14 | 28 | 9 |
| -8 | 1 / 2-20 | -4 | 1 / 4 " | I8J-0804 | 15.9 | 14 | 28 | 10 |
| -9 | 9 / 16-18 | -4 | 1 / 4 " | I8J-0904 | 17.5 | 17 | 30 | 10 |
| -9 | 9 / 16-18 | -6 | 3 / 8 " | I8J-0906 | 17.5 | 17 | 31 | 10 |
| -12 | 3 / 4-16 | -6 | 3 / 8 " | I8J-1206 | 22.2 | 22 | 32 | 11 |
| -12 | 3 / 4-16 | -8 | 1 / 2 " | I8J-1208 | 22.2 | 22 | 32 | 11 |
| -14 | 7 / 8-14 | -6 | 3 / 8 " | I8J-1406 | 25.4 | 22 | 33 | 13 |
| -14 | 7 / 8-14 | -8 | 1 / 2 " | I8J-1408 | 25.4 | 22 | 33 | 13 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4 " | I8J-1712 | 32 | 27 | 39 | 15 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4 " | I8J-2112 | 32 | 36 | 42 | 15 |
| -21 | 1.5 / 16-12 | -16 | 1" | I8J-2116 | 38 | 36 | 42 | 15 |

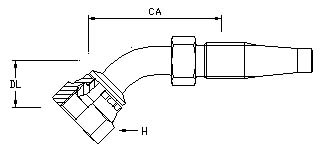

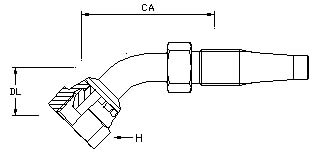

I8J4 - JIC AYOL 45 BEND
| ip | Shlang | Qism No | H | H1 | CA | DL | N | ||
| Dash | BSP | Dash | O'lcham | mm | mm | mm | mm | mm | |
| -7 | 7 / 16-20 | -4 | 1 / 4 " | I8J4-0704 | 14.3 | 14 | 44 | 14 | 9 |
| -9 | 9 / 16-18 | -4 | 1 / 4 " | I8J4-0904 | 17.5 | 14 | 44 | 15 | 10 |
| -9 | 9 / 16-18 | -6 | 3 / 8 " | I8J4-0906 | 17.5 | 17 | 54 | 18 | 10 |
| -12 | 3 / 4-16 | -6 | 3 / 8 " | I8J4-1206 | 22.2 | 19 | 55 | 19 | 11 |
| -12 | 3 / 4-16 | -8 | 1 / 2 " | I8J4-1208 | 22.2 | 22 | 63 | 22 | 11 |
| -14 | 7 / 8-14 | -8 | 1 / 2 " | I8J4-1408 | 25.4 | 22 | 65 | 23 | 13 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4 " | I8J4-1712 | 32 | 27 | 84 | 27 | 15 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4 " | I8J4-2112 | 38 | 36 | 93 | 34 | 15 |
| -21 | 1.5 / 16-12 | -16 | 1" | I8J4-2116 | 38 | 36 | 99 | 36 | 15 |

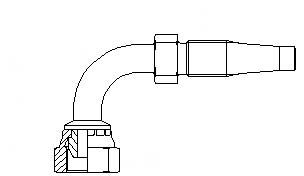

I8J9 - JIC AYOL 90 BEND
| ip | Shlang | Qism No | H | H1 | CA | DL | N | ||
| Dash | O'lcham | Dash | O'lcham | mm | mm | mm | mm | mm | |
| -7 | 7 / 16-20 | -4 | 1 / 4 " | I8J9-0704 | 14.3 | 14 | 35 | 29 | 9 |
| -9 | 9 / 16-18 | -4 | 1 / 4 " | I8J9-0904 | 17.5 | 14 | 35 | 30 | 10 |
| -9 | 9 / 16-18 | -6 | 3 / 8 " | I8J9-0906 | 17.5 | 17 | 48 | 37 | 10 |
| -12 | 3 / 4-16 | -6 | 3 / 8 " | I8J9-1206 | 22.2 | 19 | 48 | 38 | 11 |
| -12 | 3 / 4-16 | -8 | 1 / 2 " | I8J9-1208 | 22.2 | 22 | 57 | 45 | 11 |
| -14 | 7 / 8-14 | -8 | 1 / 2 " | I8J9-1408 | 25.4 | 22 | 57 | 47 | 13 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4 " | I8J9-1712 | 32 | 27 | 77 | 59 | 15 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4 " | I8J9-2112 | 38 | 36 | 77 | 67 | 15 |
| -21 | 1.5 / 16-12 | -16 | 1" | I8J9-2116 | 38 | 36 | 94 | 70 | 15 |
I8JM - JIC ERKAK TO'G'RI
| ip | Shlang | Qism No | H | CA | ||
| Dash | O'lcham | Dash | O'lcham | mm | mm | |
| -7 | 7 / 16-20 | -4 | 1 / 4 " | I8JM-0704 | 14 | 34 |
| -9 | 9 / 16-18 | -4 | 1 / 4 " | I8JM-0904 | 17 | 35 |
| -9 | 9 / 16-18 | -6 | 3 / 8 " | I8JM-0906 | 17 | 36 |
| -12 | 3 / 4-16 | -6 | 3 / 8 " | I8JM-1206 | 22 | 38 |
| -12 | 3 / 4-16 | -8 | 1 / 2 " | I8JM-1208 | 22 | 38 |
| -14 | 7 / 8-14 | -8 | 1 / 2 " | I8JM-1408 | 24 | 41 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4 " | I8JM-1712 | 30 | 48 |
| -21 | 1.5 / 16-12 | -16 | 1" | I8JM-2116 | 36 | 52 |
I8F - ORFS AYOL 90 BEND
| ip | Shlang | Qism No | H | H1 | CA | DL | |||
| Dash | O'lcham | Dash | O'lcham | mm | mm | mm | mm | mm | |
| -9 | 9 / 16-18 | -4 | 1 / 4 " | I8F9-0904 | 17.5 | 14 | 43 | 25 | 8.5 |
| -11 | 11 / 16-18 | -6 | 3 / 8 " | I8F9-1106 | 20.6 | 19 | 49 | 38 | 9.5 |
| -13 | 13 / 13-16 | -8 | 1 / 2 " | I8F9-1308 | 23.8 | 22 | 56 | 41 | 11.0 |
I8B - BSPP AYOL TO'G'RI
| ip | Shlang | Qism No | H | H1 | CA | N | ||
| Dash | BSP | Dash | O'lcham | mm | mm | mm | mm | |
| -2 | 1 / 8-28 | -4 | 1 / 4 " | I8B-0204 | 14 | 14 | 28 | 4 |
| -4 | 1 / 4-19 | -4 | 1 / 4 " | I8B-0404 | 19 | 16 | 30 | 5 |
| -4 | 1 / 4-19 | -6 | 3 / 8 " | I8B-0406 | 19 | 19 | 34 | 5 |
| -6 | 3 / 8-19 | -4 | 1 / 4 " | I8B-0604 | 22 | 19 | 33 | 6 |
| -6 | 3 / 8-19 | -6 | 3 / 8 " | I8B-0606 | 22 | 19 | 34 | 6 |
| -6 | 3 / 8-19 | -8 | 1 / 2 " | I8B-0608 | 22 | 22 | 34 | 6 |
| -8 | 1 / 2-14 | -6 | 3 / 8 " | I8B-0806 | 27 | 22 | 34 | 7 |
| -8 | 1 / 2-14 | -8 | 1 / 2 " | I8B-0808 | 27 | 22 | 34 | 7 |
| -12 | 3 / 4-14 | -8 | 1 / 2 " | I8B-1208 | 32 | 27 | 34 | 9 |
| -12 | 3 / 4-14 | -12 | 3 / 4 " | I8B-1212 | 32 | 27 | 40 | 9 |
| -16 | 1-11 | -12 | 3 / 4 " | I8B-1612 | 38 | 36 | 40 | 9 |
| -16 | 1-11 | -16 | 1" | I8B-1616 | 38 | 36 | 45 | 9 |
I8B4 - BSPP AYOL 45 BEND
| ip | Shlang | Qism No | H | H1 | CA | DL | N | ||
| Dash | BSP | Dash | O'lcham | mm | mm | mm | mm | mm | |
| -4 | 1 / 4-19 | -4 | 1 / 4 " | I8B4-0404 | 19 | 14 | 45 | 16 | 5 |
| -6 | 3 / 8-19 | -6 | 3 / 8 " | I8B4-0606 | 22 | 17 | 56 | 20 | 6 |
| -8 | 1 / 2-14 | -8 | 1 / 2 " | I8B4-0808 | 27 | 22 | 65 | 24 | 7 |
| -12 | 3 / 4-14 | -12 | 3 / 4 " | I8B4-1212 | 32 | 27 | 70 | 28 | 9 |
| -16 | 1"/11 | -16 | 1" | I8B4-1616 | 38 | 36 | 100 | 33 | 9 |
I8B9 - BSPP AYOL 90 BEND
| ip | Shlang | Qism No | H | H1 | CA | DL | N | ||
| Dash | BSP | Dash | O'lcham | mm | mm | mm | mm | mm | |
| -4 | 1 / 4-19 | -4 | 1 / 4 " | I8B9-0404 | 19 | 14 | 39 | 31 | 5 |
| -6 | 3 / 8-19 | -6 | 3 / 8 " | I8B9-0606 | 22 | 17 | 48 | 40 | 6 |
| -8 | 1 / 2-14 | -6 | 3 / 8 " | I8B9-0806 | 22 | 22 | 48 | 40 | 6 |
| -8 | 1 / 2-14 | -8 | 1 / 2 " | I8B9-0808 | 27 | 22 | 57 | 48 | 7 |
| -12 | 3 / 4-14 | -12 | 3 / 4 " | I8B9-1212 | 32 | 27 | 77 | 60 | 9 |
| -16 | 1"-11 | -16 | 1" | I8B9-1616 | 38 | 36 | 94 | 73 | 9 |
Eslatma: Agar siz ularni R1 yoki R2 kauchuk shlangiga ishlatsangiz, biz ularni RN1 yoki RN2 rozetkalari bilan ta'minlaymiz, keyin ularni H8J-R1 / H8J-R2 deb ataymiz; agar siz R5 rezina shlangidan foydalanmoqchi bo'lsangiz, biz RN5 rozetkalari bilan yig'amiz, keyin bizning qism raqamimiz H5J.
Tafsilotlar
Hozirgacha NJ SAE100R1AT, SAE100R2AT, SAE100R5 kauchuk shlang uchun qayta ishlatiladigan shlang qismlarini taklif qiladi. Shuningdek, agar mijoz to'liq va batafsil hujjatlarni taqdim eta olsa, biz 100R7 uchun qayta ishlatiladigan shlang qismlari loyihasini mamnuniyat bilan qabul qilamiz.
1. Tayyor: oddiy sink bilan qoplangan (Cr3, kumush), sink nikel bilan qoplangan, nikel bilan qoplangan
2. Mavjud o'lchamlar: 7/16-20" dan 1-5/16-12"
3. Bosim: past bosim uchun mavjud, 210PSI dan 500PSI gacha
4. MOQ: biz ko'pgina o'lchamlarni zaxirada saqlaymiz, shuning uchun moq yo'q; bo'lmasa, moq har biri 500 dona
5. Material: uglerodli po'lat (№45 po'lat), zanglamaydigan po'lat (304 yoki 316L), guruch
6. Standart: SAE/BRITISH standarti yoki chizma va namunalar bo'yicha (OEM)
7. Yetkazib berish: aktsiyadorlik buyurtmasi uchun 7-15 ish kuni va ishlab chiqarish buyurtmasi uchun 30-45 kun
